Description
gravel bike cinelli zydeco CINELLI Zydeco Gravel Bike Frameset – FISHTAIL CYCLERYCINELLI Zydeco Gravel Bike Frameset Not all framesets are made for all conditions. That is why the CINELLI Zydeco is probably the best frameset fit for almost all conditions it represents a unique union of road, touring and gravel seeking frameset. Groupset and Wheelset Compatibility The Zydeco frameset is compatible with the popular SHIMANO Gravel (GRX), SRAM Gravel (XPLR) and CAMPAGNOLO Gravel (Ekar) groupsets. It is also compatible with both 700C

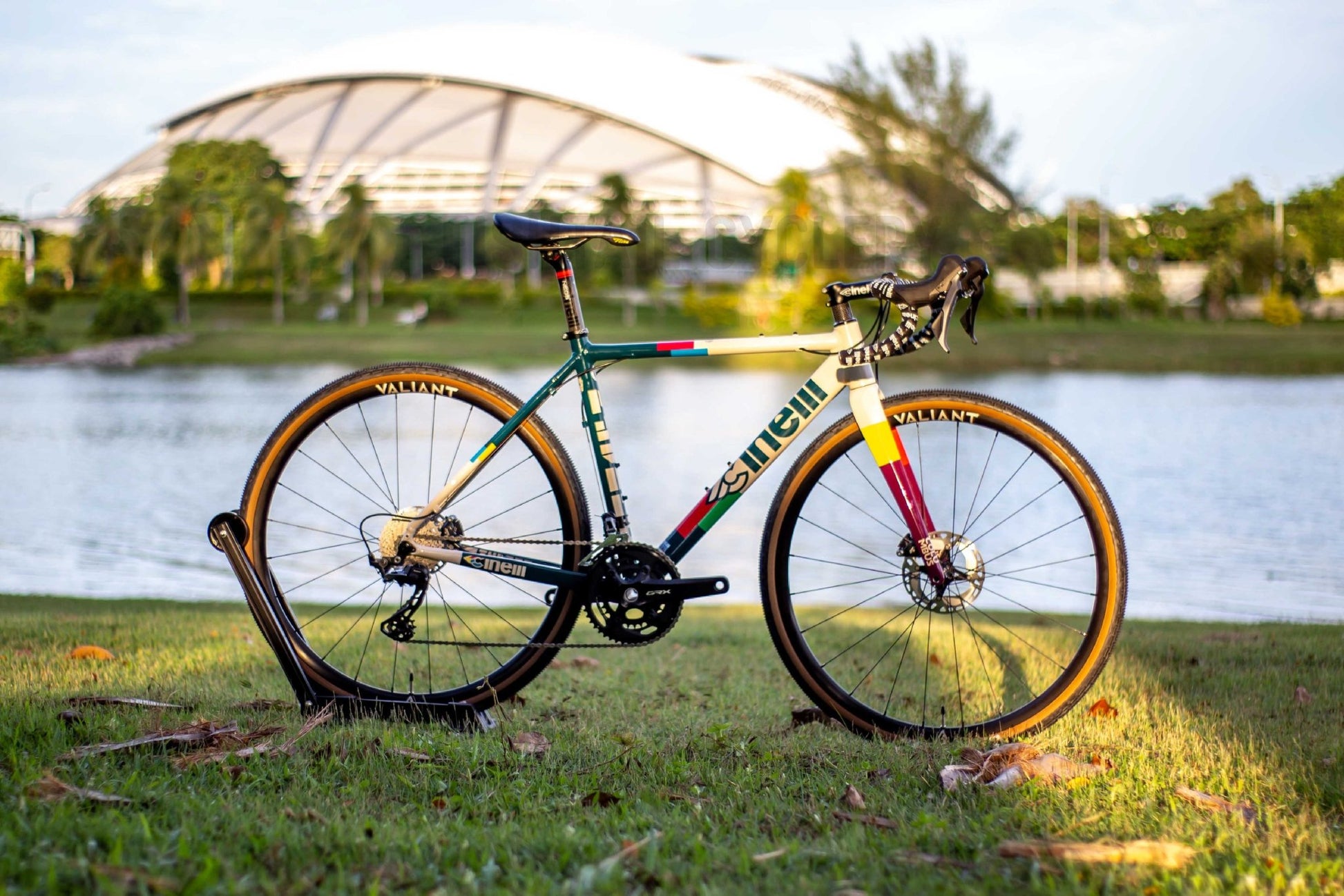

CINELLI Zydeco Gravel Bike Frameset
Not all framesets are made for all conditions. That is why the CINELLI Zydeco is probably the best frameset fit for almost all conditions - it represents a unique union of road, touring and gravel seeking frameset.
Groupset and Wheelset Compatibility
The Zydeco frameset is compatible with the popular SHIMANO Gravel (GRX), SRAM Gravel (XPLR) and CAMPAGNOLO Gravel (Ekar) groupsets. It is also compatible with both 700C and 650B wheels.
Say the word Zydeco and you'll definitely say gravel.
The new Zydeco frame also makes further steps towards bike packing - increased wheel base allows an easy use of fenders reducing the risk of toe overlap. Two rivets on the top tube also allows the best form of secure assembly for bags.
The use of thru axle system increase the braking efficiency and the lateral stiffness of the Zydeco. The Zydeco frameset also allows internal cable passages for the rear disc brakes and front/rear shifters resulting in a clean outlook.
Specifications of the CINELLI Zydeco Gravel Bike Framese:
|
AVAILABLE FRAME SIZES XS (49) - S (51) - M (54) - L (56) |
FRAME TUBE MATERIAL COLUMBUS Zonal Triple Butted Alloy |
|
SERIE STERZO / HEADSET IS 42/28,6 | IS 47/33 |
SEAT POST DIAMETER Ø 31,6mm |
|
SEAT CLAMP Ø 34,9mm |
BOTTOM BRACKET STANDARD BSA 68mm |
|
FRONT DERAILLEUR Clamp Ø34,9mm |
CABLE ROUTING Front triangle Internal (Bike-packing ready) |
|
COLORWAY Muddy Dry |
TIRE CLEARANCE up to 700x40c |
|
FORK COLUMBUS Futura Gravel 1-1/8” - 1-1/4” |
WEIGHT Frame 1760 g (size M) - Fork 450g |
|
BRAKES STANDARD Flat mount disc brake Rotor size up to 160mm |
HUB SPACING Rear TA Ø12x142mm / M12x1,5 L165mm skewer Front TA Ø12x100mm / M12x1,5 L119mm skewer |
|
FEATURES Front & Rear fender, rear rack eyelets / Extra hanger / Fast fuel eyelets |
Geometry diagram of the CINELLI Zydeco Gravel Bike Framese:
Geometry chart of the CINELLI Zydeco:
| Mark | XS | S | M | L | XL |
|---|---|---|---|---|---|
| S1 | 490 | 510 | 540 | 560 | 590 |
| S | 447 | 467 | 497 | 517 | 547 |
| T1 | 510 | 520 | 539 | 560 | 580 |
| T | 504 | 514 | 530 | 549 | 570 |
| H/T | 100 | 120 | 140 | 160 | 180 |
| a° | 70.5 | 71 | 71.5 | 72 | 72.5 |
| b° | 74.5 | 74.5 | 74 | 73.5 | 73 |
| R | 47 | 47 | 47 | 47 | 47 |
| C | 440 | 440 | 440 | 440 | 440 |
| F | 580 | 587 | 595 | 606 | 617 |
| WB | 1010 | 1017 | 1025 | 1037 | 1047 |
| E | 71 | 70 | 70 | 70 | 70 |
| Fork | 382 | 382 | 382 | 382 | 382 |
| St.Ov. | 745 | 765 | 791 | 810 | 835 |
| Stack | 510 | 530 | 551 | 572 | 592 |
| Reach | 371 | 375 | 380 | 390 | 399 |
